Mainly used in cool or hot water lines in the iron and steel industries.
|
ID
|
OD
|
WEIGHT
|
|
|---|---|---|---|
|
inch
|
mm
|
mm
|
kg/metre
|
|
3/8
|
10
|
22
|
0.4
|
|
1/2
|
13
|
25
|
0.5
|
|
3/4
|
20
|
33
|
0.7
|
|
1
|
25
|
39
|
1
|
|
1 1/4
|
32
|
48
|
1.2
|
|
1 1/2
|
38
|
56
|
1.7
|
|
1 3/4
|
44
|
62
|
2
|
|
2
|
51
|
69
|
2.4
|
|
2 1/4
|
57
|
76
|
2.7
|
|
2 1/2
|
63
|
83
|
3
|
|
3
|
76
|
96
|
3.4
|
|
3 1/2
|
88
|
108
|
3.8
|
|
4
|
102
|
122
|
4.2
|
|
4 1/2
|
115
|
137
|
4.7
|
|
5
|
128
|
150
|
5.1
|
|
5 1/2
|
140
|
162
|
5.6
|
|
6
|
153
|
177
|
6.1
|
Product Specifications
WORKING PRESSURE
- 10 BAR (150 Psi)

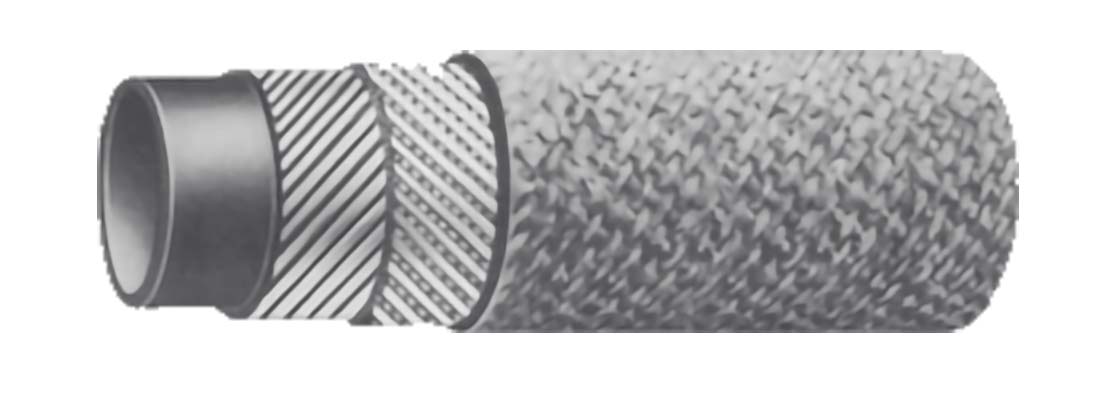

TUBE
- Black smooth heat resistant EDPM rubber
REINFORCEMENT
- Layers of high strength textile yarn / cord
COVER
- Heat resistant EDPM rubber with asbestos or fibre glass layer
IDENTIFICATION
- No stripe (Embossed SUPERFLEXHOSE Branding)
LENGTH
- Available in 20 and 40 metres as standard, other length & diameter on request
FACTOR OF SAFETY
- 1:10
TEMPERATURE RANGE
- -35 C TO 120 C. Radiation temperature maximum + 300 C
