For general steam service, also suitable for high preasure air and water.
|
ID
|
OD
|
WEIGHT
|
|
|---|---|---|---|
|
inch
|
mm
|
mm
|
kg/metre
|
|
3/8
|
10
|
29
|
0.4
|
|
1/2
|
13
|
29
|
0.7
|
|
3/4
|
20
|
36
|
0.9
|
|
1
|
25
|
41
|
1.1
|
|
1 1/4
|
32
|
48
|
1.3
|
|
1 1/2
|
38
|
54
|
1.6
|
|
1 3/4
|
44
|
60
|
1.8
|
|
2
|
51
|
67
|
2.1
|
|
21/4
|
57
|
74
|
2.3
|
|
2 1/2
|
63
|
80
|
2.5
|
Product Specifications
WORKING PRESSURE
- 7 BAR (100 Psi)
TUBE
- Black smooth steam and chemical resistant EDPM rubber
REINFORCEMENT
- Layers of high strength textile yarn / cord
COVER
- Black heat, weather, ozone and chemical resistant EPDM rubber
IDENTIFICATION

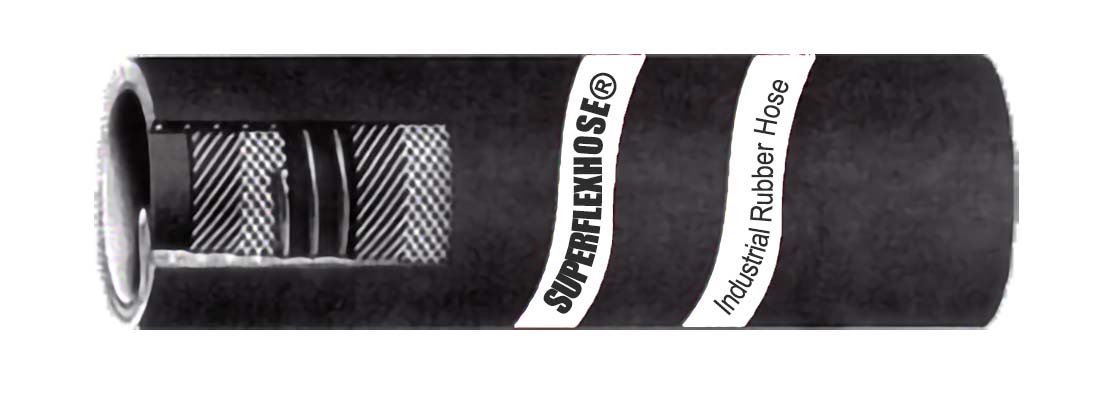

- White Longitudinal stripe SUPERFLEXHOSE Steam Suction & Delivery. Type-4002 WP 100 Psi
LENGTH
- Available in 20 and 40 metres as standard, other length & diameter on request
FACTOR OF SAFETY
- 1:10
