Suitable for Oil Suction & delivery service
Product Specifications
PRESSURE RATING
- 15 Bar (225 Psi)
AMBIENT TEMPERATURE
- from -30°C (-22°F) to +52°C (+125°F)
FLUID
- Crude Oil, liquid oil products
TEMPERATURE
- from -20°C (-4°F) to +82°C (+180°F)
FLOW VELOCITY
- 21m/sec (70 ft/sec) max
AROMATIC RESISTANT
- Up to 50%
ELECTRICAL CONTINUITY
- Discontinuous/Continuous at the request
BENDING RADIUS MIN
- 6x Nominal Hose Bore
IDENTIFICATION

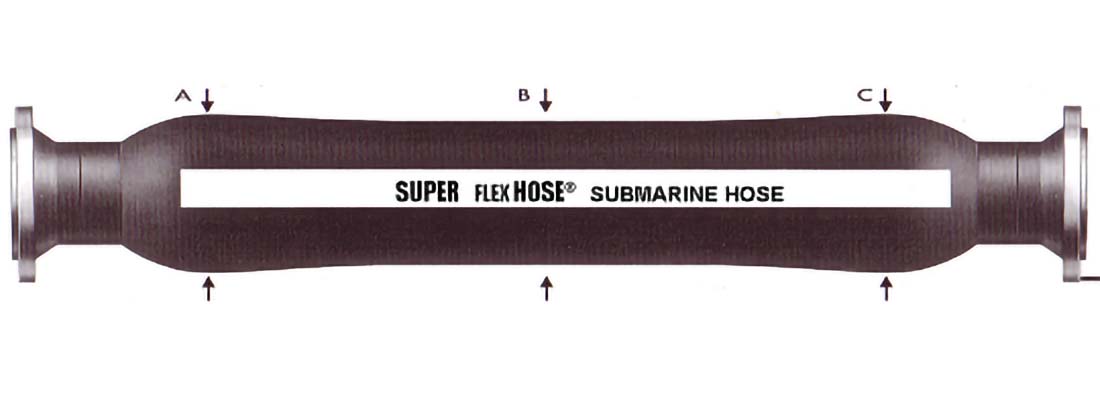

- White Longitudinal Stripe, SUPERFLEXHOSE® Submarine Hose/Embossed
LENGTH
- Up to 40 feet
SAFETY FACTOR
- 1:5
FLANGES
- ANSI class 150 Weld -neck & Flat face / Raised face at the request
*Other material, length & diameter on request
