Suitable for water based slurry and dry powder suction and delivery applications.
|
ID
|
OD
|
WEIGHT
|
|
|---|---|---|---|
|
inch
|
mm
|
mm
|
kg/metre
|
|
1
|
25
|
38
|
1.2
|
|
1 1/4
|
32
|
45
|
1.4
|
|
1 1/2
|
38
|
51
|
1.5
|
|
1 3/4
|
44
|
58
|
1.8
|
|
2
|
51
|
65
|
2.2
|
|
2 1/4
|
57
|
71
|
2.5
|
|
2 1/2
|
63
|
77
|
2.8
|
|
2 3/4
|
70
|
85
|
3.1
|
|
3
|
76
|
91
|
3.4
|
|
3 1/2
|
88
|
104
|
4.3
|
|
4
|
102
|
119
|
4.7
|
|
4 1/2
|
115
|
135
|
5.2
|
|
5
|
128
|
148
|
7.8
|
|
5 1/2
|
140
|
160
|
8.5
|
|
6
|
153
|
177
|
10.2
|
|
8
|
203
|
229
|
16
|
|
8 1/2
|
219
|
244
|
18
|
|
10
|
253
|
283
|
22
|
|
12
|
303
|
333
|
26
|
|
14
|
355
|
385
|
30
|
|
16
|
407
|
437
|
35
|
Product Specifications
WORKING PRESSURE
- 10 Bar (150 Psi)
TUBE
- Black oil mist resistant synthetic rubber
REINFORCEMENT
- Layers of high strength textile yarn / cord & double high tensile steel wire helix
COVER
- Black, weather, and abrasion resistant synthetic rubber
IDENTIFICATION

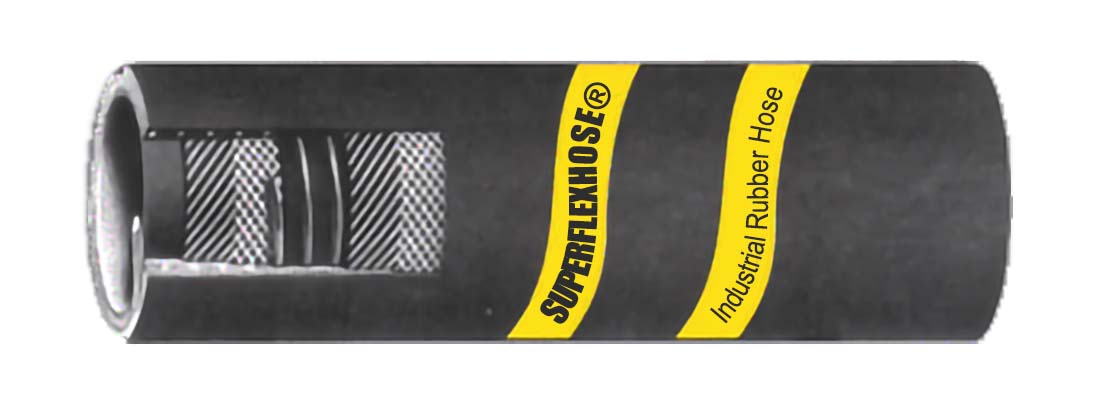

- Yellow spiral stripe SUPERFLEXHOSE® Water Suction & Delivery. Type-1002 WP 150 Psi
LENGTH
- Available in 10, 20 and 40 metres as standard, other length & diameter on request
FACTOR OF SAFETY
- 1:3
